Details
Manual configuration
Door opening with keypad
Door opening with RFID cards and key fobs
Easy installation and no drilling required
Access technology for your door

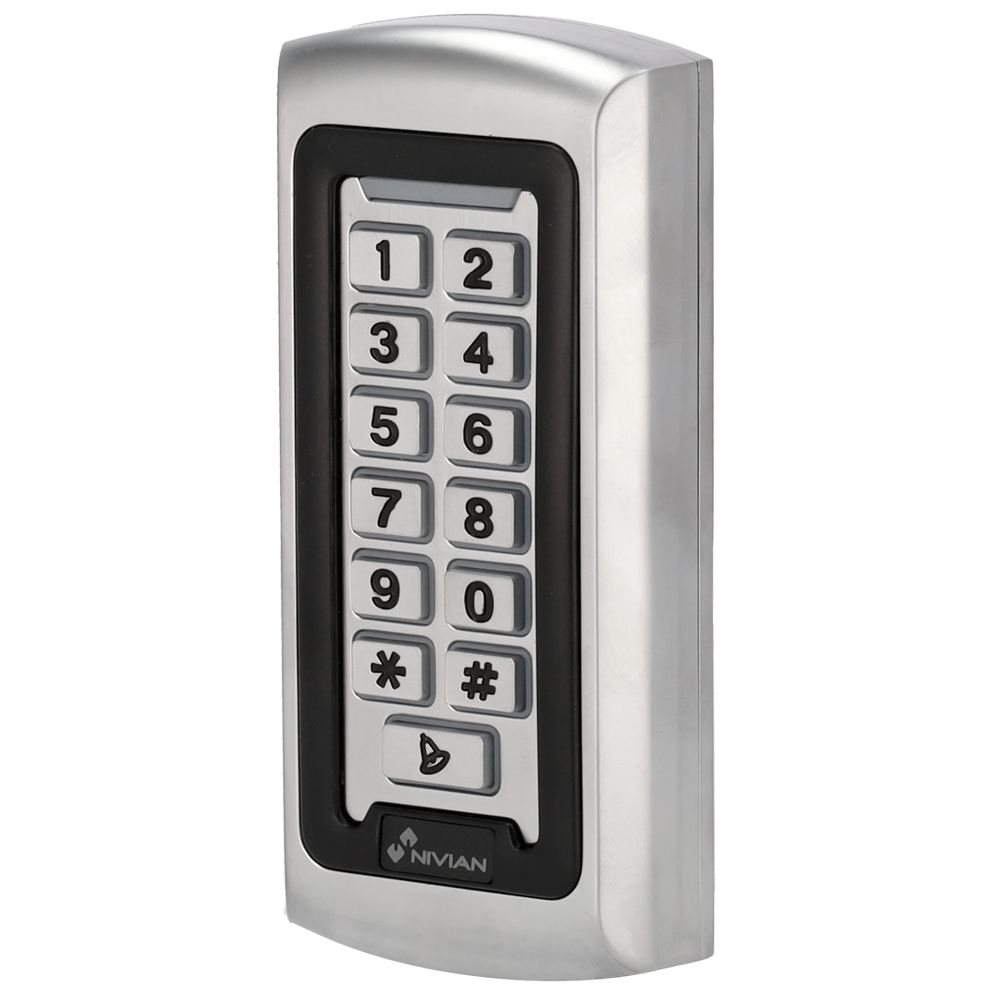

Control access to your door in a versatile and personalized way according to your needs or those of other users. You can configure different opening methods, either through numerical codes and Mifare RFID cards or key fobs, up to a combination of both or using your own conventional keys. You will enjoy greater flexibility and security in access. In addition, the device also has a doorbell button.
Careful design
Its design is specifically intended to be installed in frames or narrow parts close to the door, thus solving one of the main difficulties when installing access control. It also includes a doorbell button to simplify the installation and LED indicator for easy use.
High durability and resistance
Made of zinc alloy, this device has a high resistance to wear and tear, being rust-proof and able to withstand any act of vandalism. Its interior is protected with a special plastic resin that makes it resistant to the most extreme weather conditions. In addition, it is completely waterproof and has the highest protection certification (IP68).
Gain security and peace of mind
We help you make the complicated simpler. The installation method for this access control is very simple, since you will only have to connect two cables to the terminals of your electric lock and use the existing power supply. To exit, you can open the door with a handle, install an opening button or even add another access control.
Technical specifications
| Model | NV-ACCESS-PIN-RFID |
|---|---|
| Types of identification | Access by card, PIN code and/or combinations |
| Card type | RFID EM 125 kHz card |
| Capacity | Up to 2,000 users/cards/PIN codes |
| Connection inputs | Input for push button and Wiegand 26 bits (configurable as input) |
| Connection outputs | Relay output NO (normally open)/NC (normally closed), bell and Wiegand 26 bits (configurable as output) |
| Keyboard | Backlit with 13 physical keys (0-9 numbering, * key, # key and buzzer key) |
| Internet connection | Not available |
| Remote management | Not available |
| Communication protocols | Wiegand |
| Initial setup | Managing users and credentials with the keyboard |
| Access functions | Selection of the relay opening time / Selection of the identification type (single or combined) |
| Material | Vandal-proof zinc alloy |
| Use | Suitable for outdoor use IP68 |
| Feeding | Power supply DC 12V / 1A max. (not included) |
| Dimensions (without packaging) | 56 (W) x 120 (H) x 20 (D) mm |
| Weight (without packaging) | 510 g |
Box contents
- Standalone access control keypad
- Mounting accessories
- User manual
