Details
Wifi
Door opening with keypad
RFID card door opening
Easy installation and no drilling required

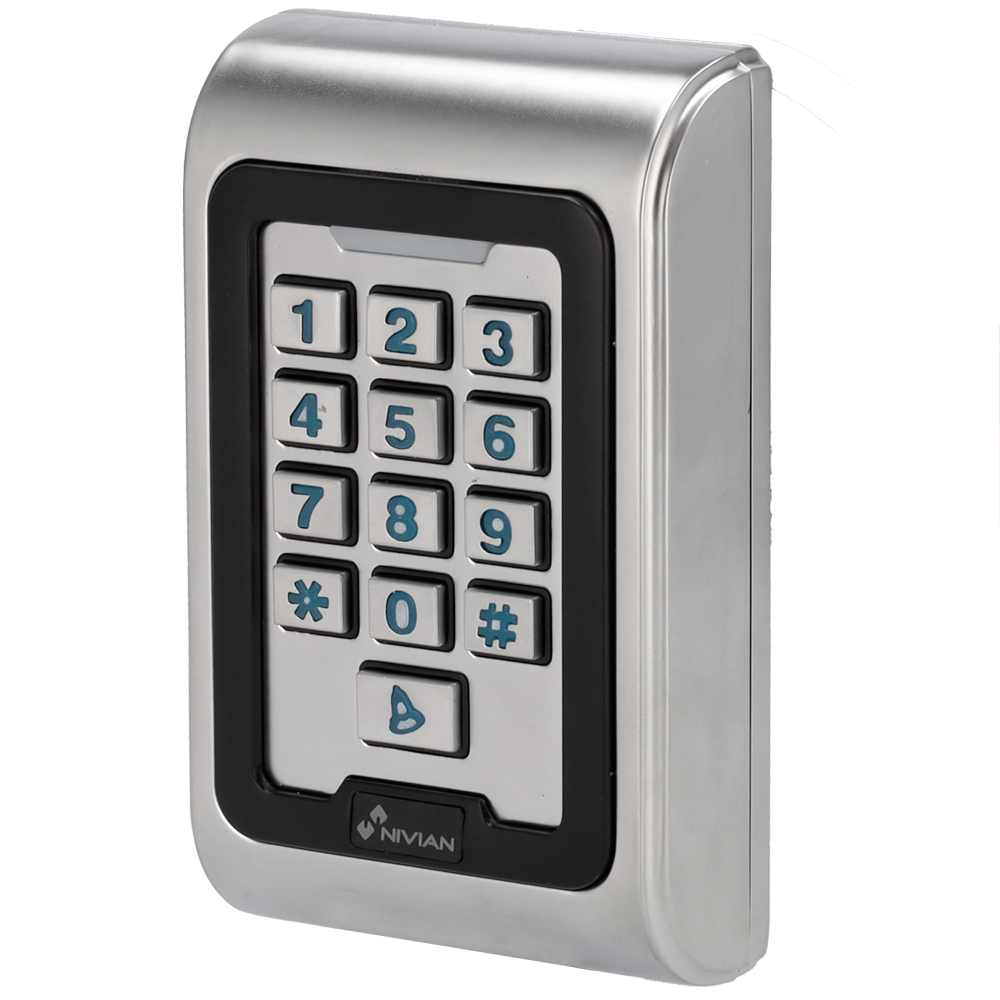

Access control for your door
Open and close your door in multiple ways, including custom locks for each user, depending on your needs. You can use numeric codes, standard RFID cards or key fobs, combinations of both, or simply use your traditional keys. You'll enjoy greater flexibility and more secure access. Plus, it includes an integrated doorbell button!
Different smart uses
Its WiFi connection allows you to use the mobile app to fully control your access and even to consult opening reports for each user. You can open the door with your mobile phone in front of the door and also from anywhere. To complete your installation, a Nivian WiFi camera will be the ideal complement for your peace of mind.
Send permissions to your guests
Share remote permissions with other users so they can open the door with their own mobile phone or with codes, without having to lend your keys or give a card. Ideal for businesses with employees or for tourist apartments, you can easily create temporary access for tenants and service personnel.
Reliability and high resistance
Made of zinc alloy, it is rust-proof, durable and resistant to any vandalism. Its interior is coated with a special plastic resin resistant to the most adverse weather conditions and is completely waterproof, with the highest certified protection grade (IP68).
Gain security in a simple way
We make what may seem complicated simple! Installing your access control is as easy as connecting two wires to the terminals of your electric lock and connecting it to the existing power supply. For the exit, you can open with a handle on the door, place an opening button or another access control.
TUYA SMART LIFE APP: Complete access management at your fingertips
With the Tuya mobile app you can open and close the door, manage and invite users and view access logs quickly and easily.
Technical specifications
| Model | NV-ACCESS-PIN-RFID-W |
|---|---|
| Types of identification | Access by card, PIN code, mobile application and/or combinations |
| Card type | RFID EM 125 kHz card |
| Capacity | Up to 2,000 users/cards/PIN codes |
| Connection inputs | Input for push button and Wiegand 26 bits (configurable as input) |
| Connection outputs | Relay output NO (normally open)/NC (normally closed), bell and Wiegand 26 bits (configurable as output) |
| Keyboard | Backlit with 13 physical keys (0-9 numbering, * key, # key and buzzer key) |
| Internet connection | Wireless Wi-Fi 2.4 GHz (IEEE 802.11b/g/n) |
| Remote management | Tuya Smart or SmartLife mobile application |
| Communication protocols | TCP/IP, DHCP, Wiegand |
| Initial setup | Activating pairing mode with the keyboard and adding it in the APP |
| Access functions | Selection of the relay opening time / Selection of the identification type (single or combined) |
| APP Functions | Remote openings / Creation and management of users / Issuance of credentials (cards and passwords) / Creation of temporary codes / Viewing access logs / Creation of smart automations in the Tuya Smart or SmartLife APP |
| Material | Vandal-proof zinc alloy |
| Use | Suitable for outdoor use IP68 |
| Feeding | Power supply DC 12V / 1A max. (not included) |
| Dimensions (without packaging) | 78 (W) x 118 (H) x 25 (D) mm |
| Weight (without packaging) | 640 g |
Box contents
- Standalone access control keypad
- Installation material
- User manual
