Details
Different recording modes
Activate the recording mode manually, by motion detection or schedule your recordings (allows you to install a hard drive of up to 6TB so you don't miss a thing)
Configuración Plug&Play
The cameras are already preconfigured with the recorder. Just connect your recorder to the network and power and connect your cameras with a single cable to it. You will directly view the images. Add the kit to the app on your Smartphone by simply scanning the QR code.
POE (Power over ethernet) technology
POE technology allows you to power your cameras as well as view images through a single ethernet cable for each camera.

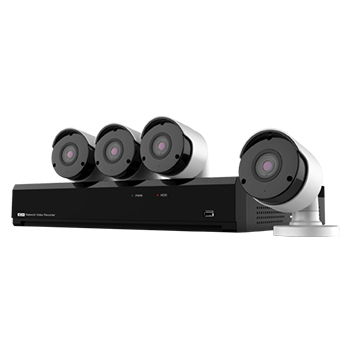

NV-KIT41-4CAM-5M
High quality image 5 Mpx
The 4-channel recorder allows you to view up to 4 high-quality 5Mpx cameras so as not to miss details of each scene.
NIVIAN CONNECT / RX CAMVIEW APP
Remote control of your video surveillance system through a «click»
Real time vision
Simultaneous view of several cameras
Two-way audio for comprehensive communication
Zoom to see details
Event notification through your Smartphone
Nivian Connect / RX CamView APP
Manage your video surveillance system through your smartphone
Compatible Products
-
NV-IPCV020H-5
5 Mpx Bullet IP Camera
-
NV-IPDM940HA-5
5 Megapixel Dome IP Camera
Technical specifications
IP cameras
| Brand | Nivian |
|---|---|
| Model | NV-IPCV020H-5 |
| Image sensor | 1 / 2.7 "Progressive CMOS |
| Maximum resolution | 5 Megapixel (2952 x 1944) |
| Main Stream Rate | 5M / 4M / 3M / 1080p / 720p (1 ~ 15 FPS) |
| Compression | H.265 / H.264 |
| Bitrate | 256 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Minimum illumination | 0.05 Lux / F1.2 |
| Infrared lighting | 0 Lux / 18 SMD LEDs (30m) |
| Image enhancements | DWDR, BLC, Privacy Masking |
| Day Night | Removable ICR mechanical filter |
| Network interface | 10/100 BaseT Ethernet |
| Internal storage | Not available |
| Interoperability | ONVIF |
| Feeding | DC 12V / 7W, PoE IEEE802.3af |
| Degree of protection | Waterproof IP66 |
| Temp. functioning | -30º C ~ + 55º C |
| Measurements | 115 mm (Fo) x 63 (Ø) mm |
| Weight | 225 g |
NVR
| Brand | Nivian |
|---|---|
| IP camera inputs | LAN port up to 4 channels |
| PoE | IEEE802.3af 4-port PoE switch (max. 30 W) |
| Compatible IP cameras | NIVIAN (proprietary protocol), ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Audio | 1 RCA output |
| Video compression format | H.265 / H.264 |
| Recording resolution | 8Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Alarms | Not available |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal storage | 1 SATA 3.5 "HDD up to 6TB (not included) |
| Communication | 1 RJ45 10/100 / 1000M (Ethernet) |
| Remote access | Nivian Connect / RXCamView App and Nivian VMS Software |
| Feeding | 48VDC / 1.5 A |
| Dimensions | 53 (H) x 227 (W) x 300 (Fo) mm / 1.7 Kg (without HDD) |
Box contents
4 Channel IP NVR Recorder
4 IP cameras
Installation material
Instructions for use
20m IP cable.
