Details
Plug and play

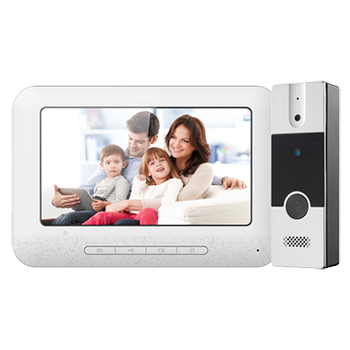

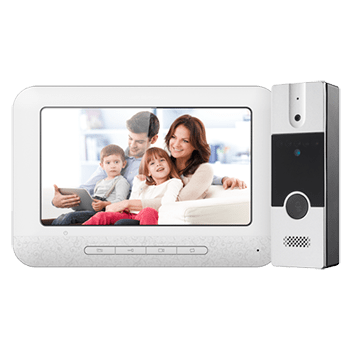

The NV-VINTERCOM-ANALOG video door entry system is easy to install, uses 4-wire technology, so replacing the old video door entry unit will be as simple as replacing the connections.
Connects and ready for operation
Integrated relay output
The external panel has a valid relay output to activate the opening of a door
Analog cameras
This kit has the possibility of adding analog cameras to the monitor for a complete visualization of the environment
Technical specifications
License plate
| Brand | Nivian |
|---|---|
| Operating system | LINUX OS |
| Lens | 1/4 "CMOS |
| Resolution | 720x576 |
| Vision angle | D: 98º |
| Audio | Two-way audio with microphone and speaker with noise reduction |
| Keyboard | Physical bell button |
| Departure | 1 monitor output and 1 relay output |
| Tickets | Not available |
| Communication | 4-wire technology |
| Feeding | DC 12V 250mA Max. (Powered through 4-wire monitor) |
| Material | Aluminum alloy and ABS combination |
| Temp. functioning | -30º C ~ + 60º C |
| Dimensions | 128 (H) x 42 (W) x 24.8 (W) mm |
| Weight | 800 g |
Monitor
| Brand | Nivian |
|---|---|
| Operating system | LINUX OS |
| LCD | 7 "800 x 400 |
| Operation mode | Physical keypad |
| Tickets | 1 analog chamber and 4 plate inputs |
| Audio | Two-way audio with microphone and speaker with noise reduction |
| Communication | 4-wire technology |
| Feeding | 12 V DC / 420 mA max |
| Temp. functioning | -10º C ~ + 55º C |
| Dimensions | 195.8 (H) x 132.8 (W) x 18.39 (Fo) mm |
| Weight | 800 g |
Box contents
Nivian video door entry panel
Indoor monitor
Mounting material
Extra long connection cable
