Details

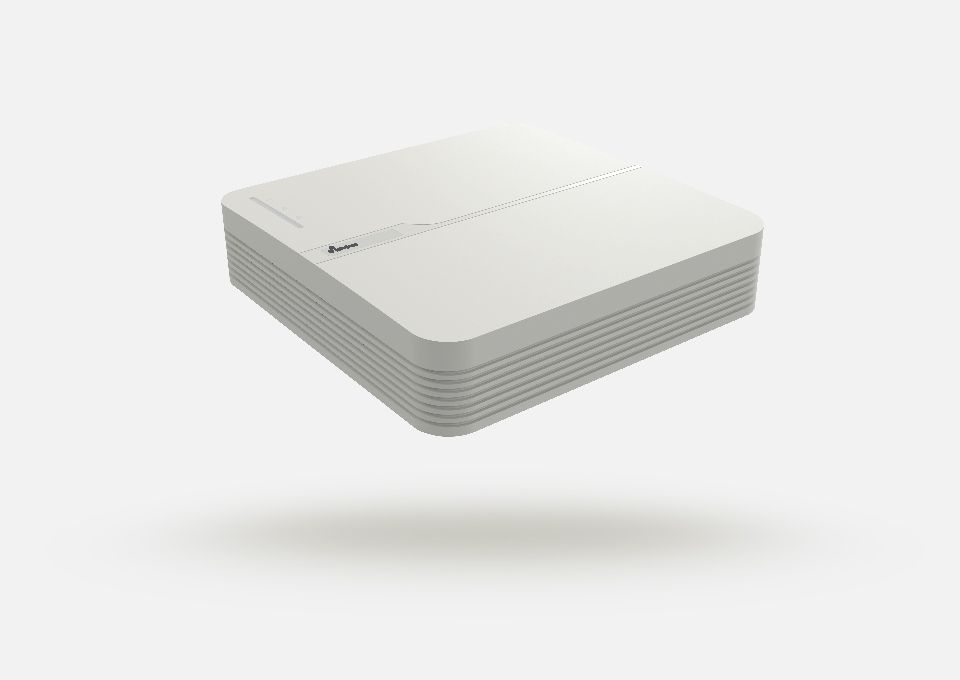

Professional range recorder
Professional recorder designed for continuous surveillance 24 hours a day, 365 days a year. Top quality components for greater durability.
5N1 technology
The recorder is ready to accept
cameras with HDTVI, HDCVI, AHD, CVBS and IP data transmission technology.
FullHD recording quality for higher image quality.
2 recording modes
You can configure your surveillance system with recording modes, continuous / time or by motion detection.
Guarding Vision
Free PC software and smartphone APP
View of various cameras and recorders
Digital zoom and motion control
Instant event notifications
APP Guarding Vision
Manage your video surveillance system through your smartphone
Compatible Products
-
NV-KIT420W-H
4-channel WIFI Video Surveillance KIT
-
NV-XVR410
4-channel analog recorder and FullHD resolution
-
NV-TIMEACCESS-IP
Access and Presence Control
-
NVS-S7B
95dB outdoor siren with light alert
Technical specifications
| Brand | Nivian |
|---|---|
| Video format | HDTVI / AHD / CVBS |
| Video inputs | 4 BNC Channels (HDTVI / AHD / CVBS) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA Channel |
| Audio outputs | 1 RCA Channel |
| Two-way audio | Reusing audio input / output |
| Video / audio compression | H.264 + / G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 1080N / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF |
| Main Stream encoding | 1080N / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF (1 ~ 25 FPS) |
| Extra Stream Coding | CIF / QCIF (1 ~ 25 FPS) |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Alarms | Not available |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal storage | 1 HDD SATA 3.5 "up to 6TB (not included) |
| Communication | 2 x USB (Mouse and Backup) / RJ45 10/100 (Ethernet) |
| Remote access | Browser, mobile phone application or Nivian CMS software |
| Feeding | DC 12V / 2A |
| Dimensions / Weight | 45 (H) x 200 (W) x 200 (Fo) mm / 800 g |
Box contents
Recorder 4 in 1 Nivian
Mouse
AC / DC 12V / 2A adapter
